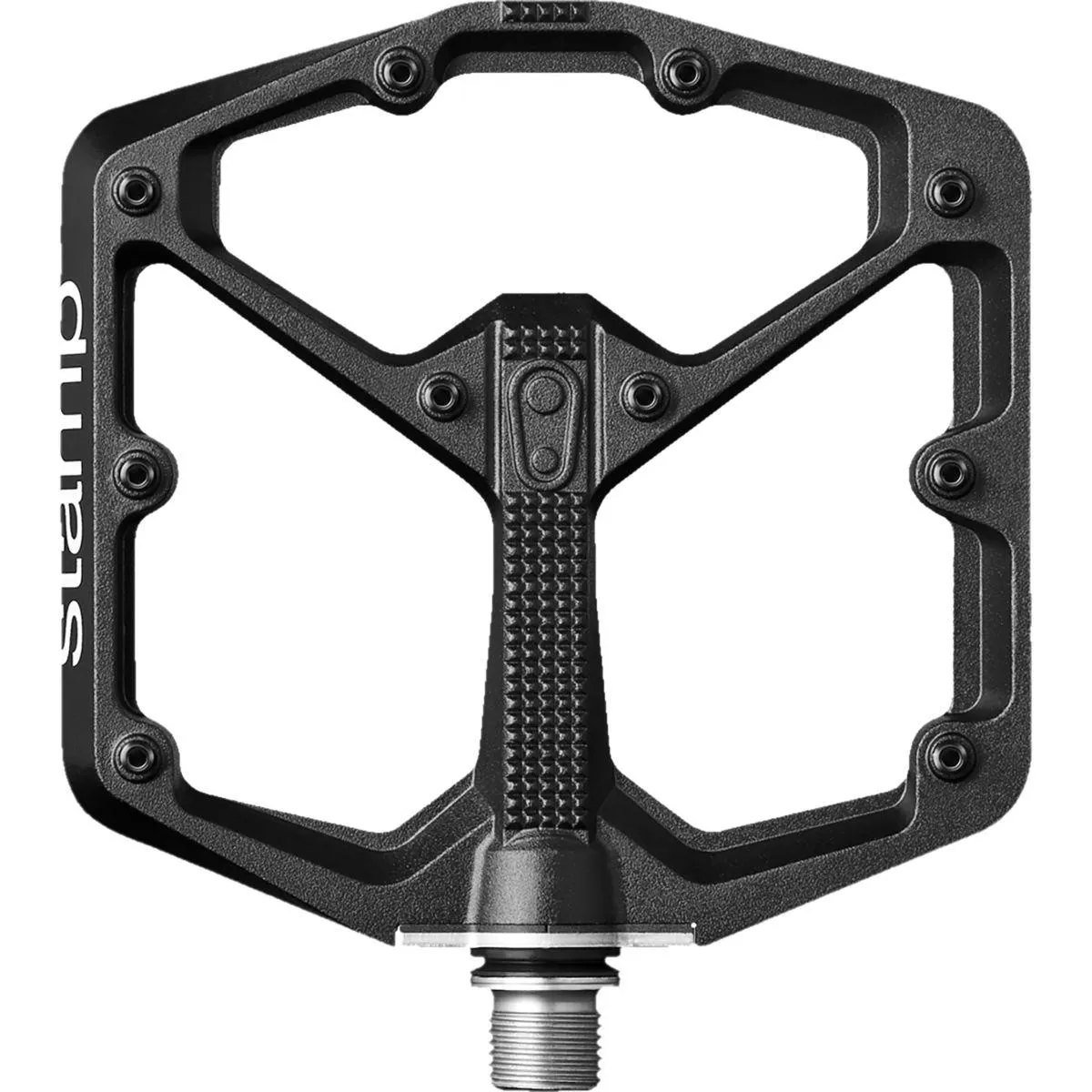

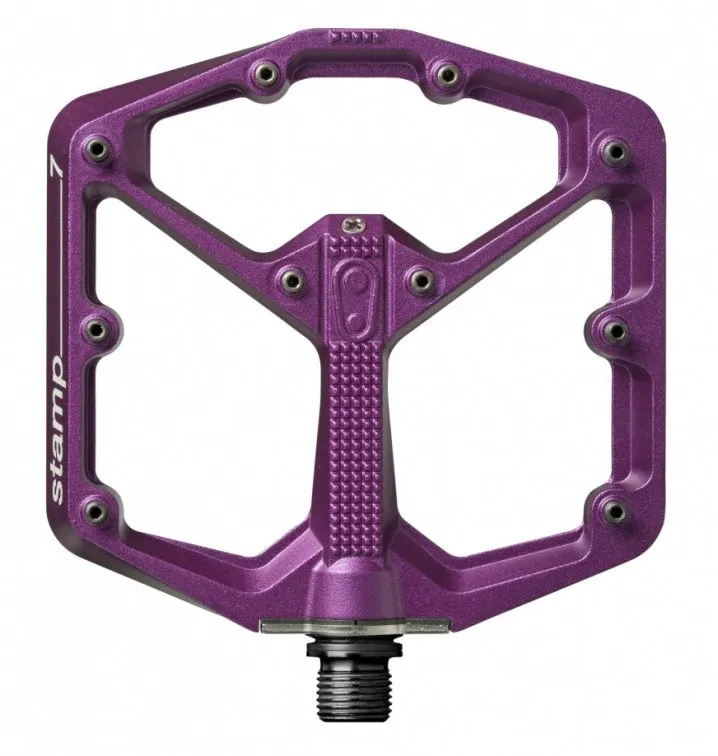

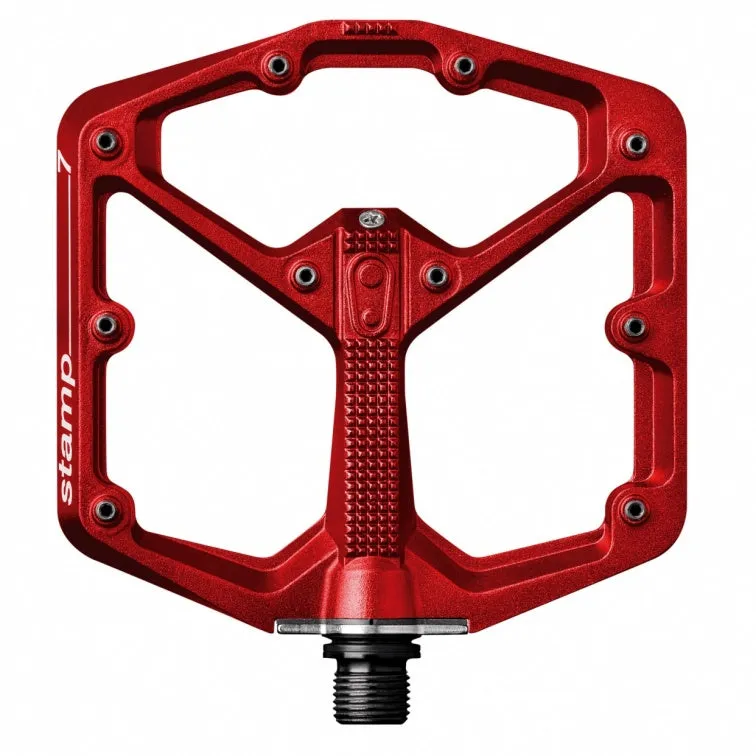

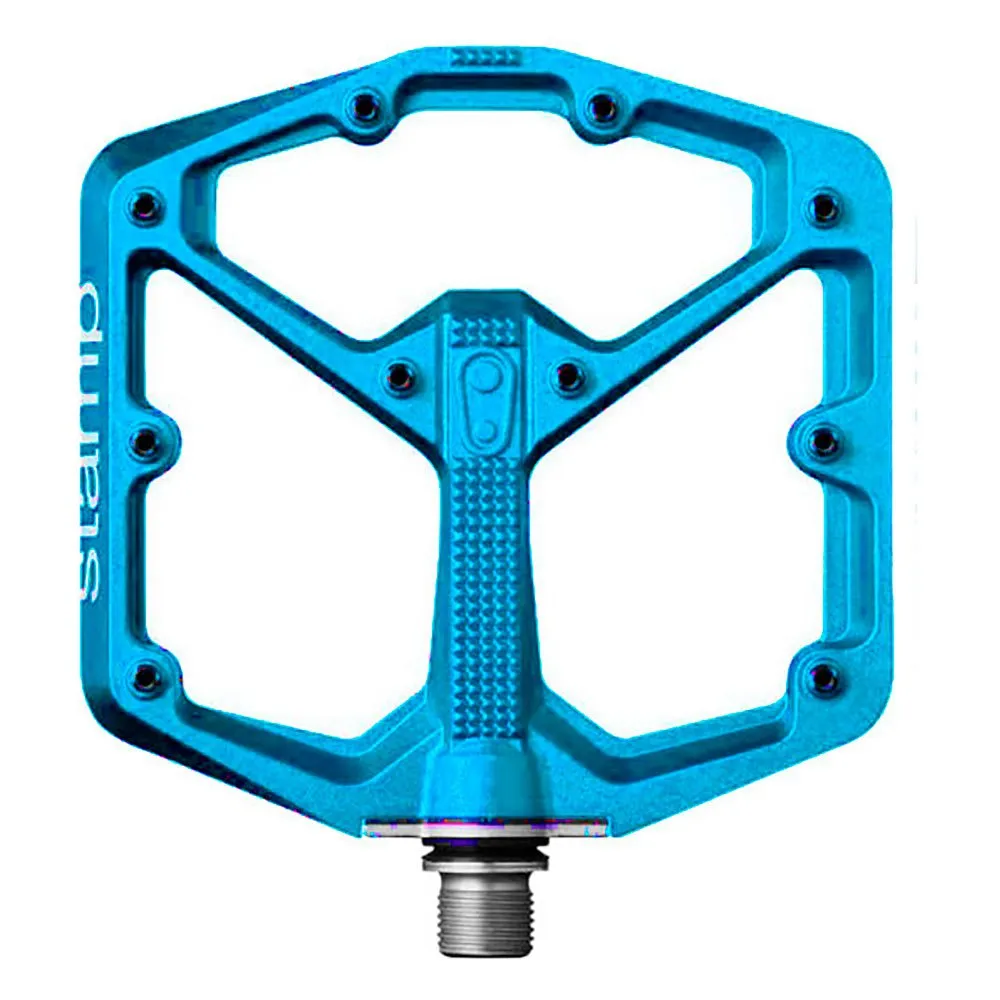

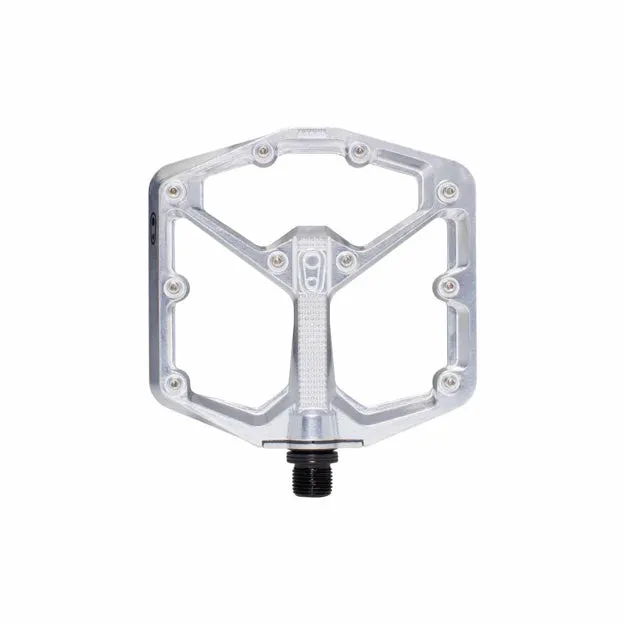

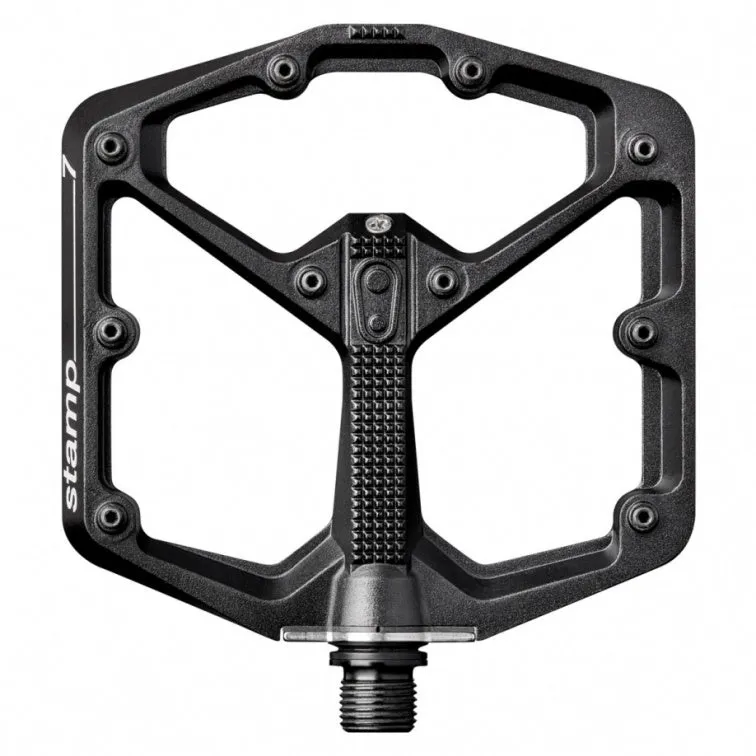

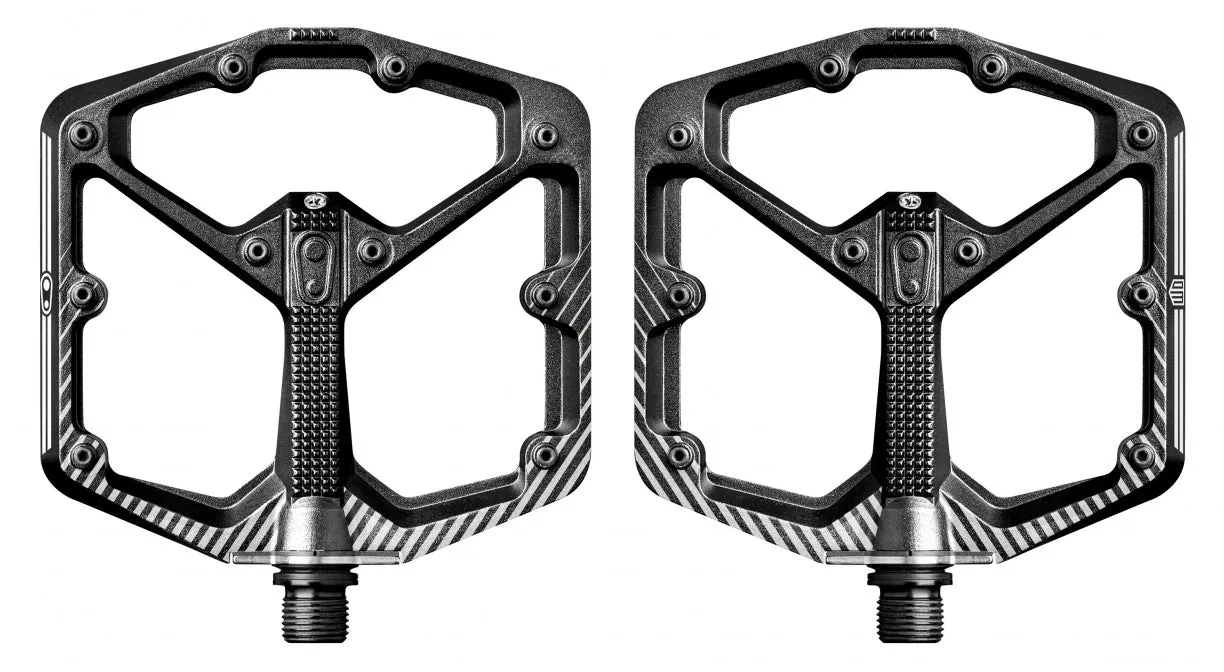

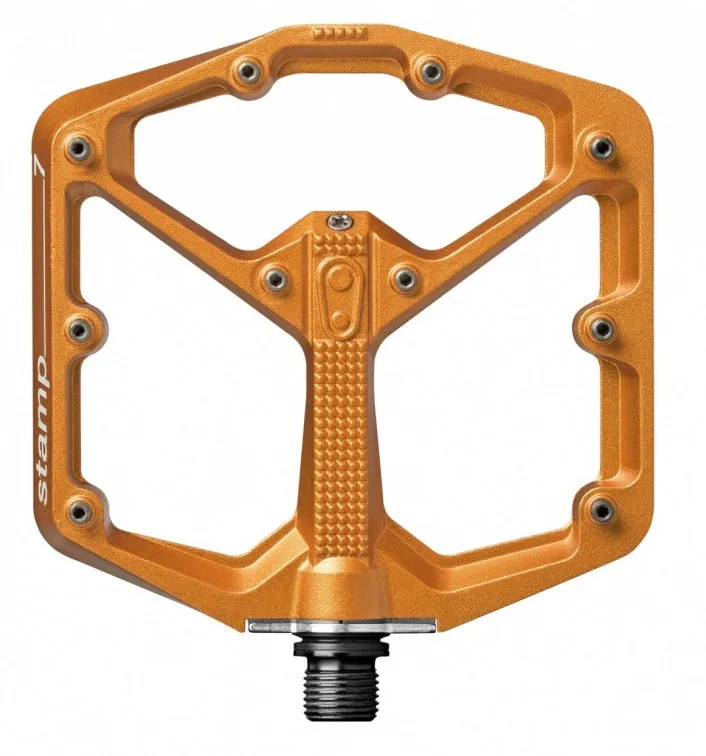

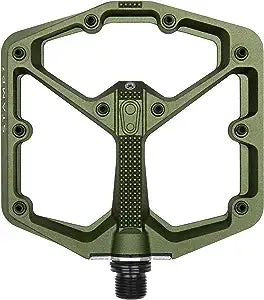

Stamp 7
Size specific pro-level concave platform pedal provides optimal shoe/pedal interface
Details
- Downhill/Enduro
- Optimal surface area
- Minimal profile 11mm-13mm thin
- Concave platform for secure foothold
- 10 adjustable pins per side for grip
- Premium bearings & seal system
- Grease port for easy maintenance
- Stamp large recommended for shoe sizes: 10-15 (us) // 43-49 (eu)
- Stamp small recommended for shoe sizes: 5-10 (us) // 37-43 (eu)
- Serviceable
Tech Specs
- adjustable pins 10 per side
- body material forged 6061-T6 aluminum
- footprint 114mm x 111mm
- inner bearing type Igus LL-glide bearing
- max rider weight No restriction
- outer bearing type Igus LL-glide bearing
- shoe size US 10-15 // EU 43-49
- spindle material Forged scm 435 chromoly steel
- warranty 5 years
- weight 375g per pair

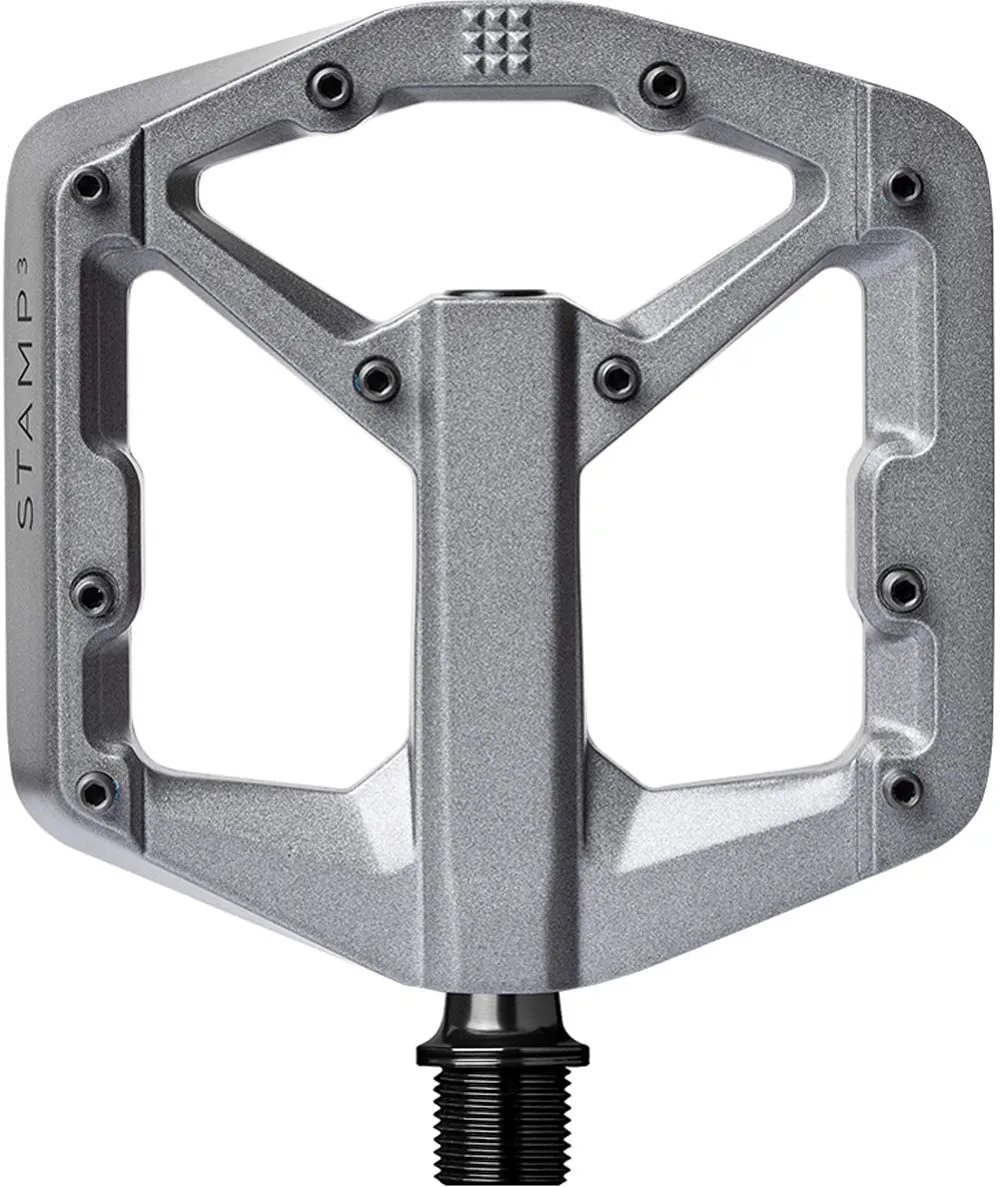

Stamp 3
Size specific magnesium platform pedal provides optimal shoe/pedal interface.
Details
- Downhill/Enduro/Trail
- Magnesium pedal body for weight reduction
- Optimal surface area
- Minimal body profile - 16mm thin
- Concave pin profile & 10 adjustable pins per side for grip
- Premium bearings & seal system
- Stamp small recommended for shoe sizes: 5-10 (us) // 37-43 (eu)
- Stamp large recommended for shoe sizes: 10-15 (us) // 43-49 (eu)
- Serviceable
Tech Specs
- adjustable pins 10 per side
- body material AM60B Magnesium Alloy
- endcap T15
- footprint 114mm x 111mm
- inner bearing type Igus Bearing
- max rider weight No restriction
- outer bearing type Double Cartridge Bearing
- shoe size US 10-15 // EU 43-49
- spindle material Forged SCM 415 Chromoly Steel
- warranty 5 years
- weight 386g per pair

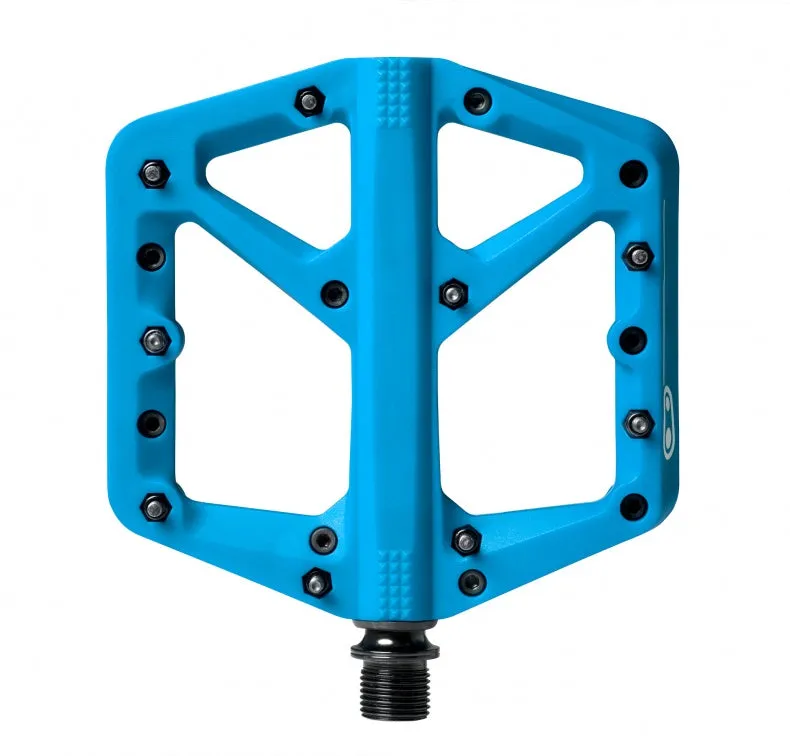

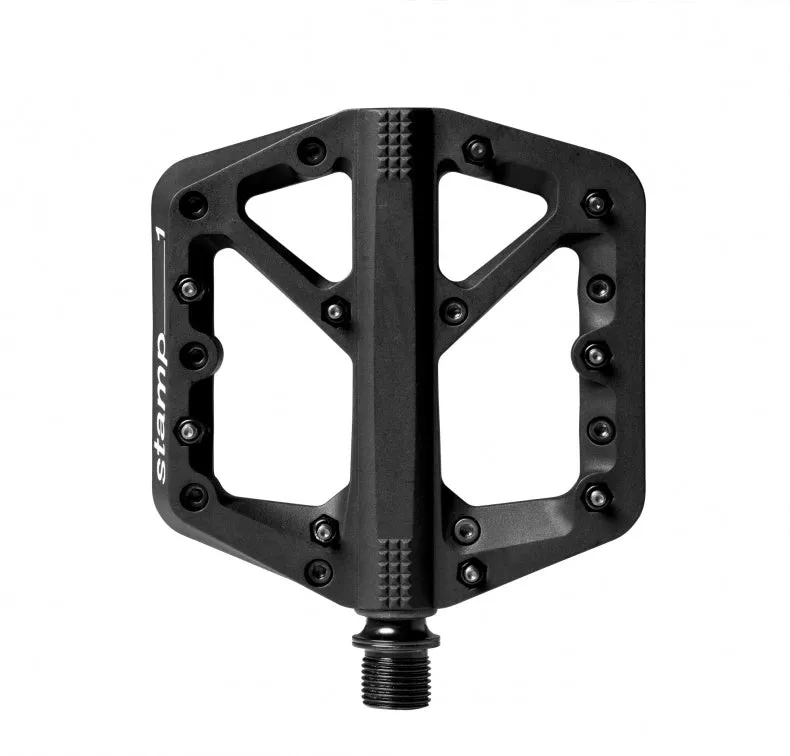

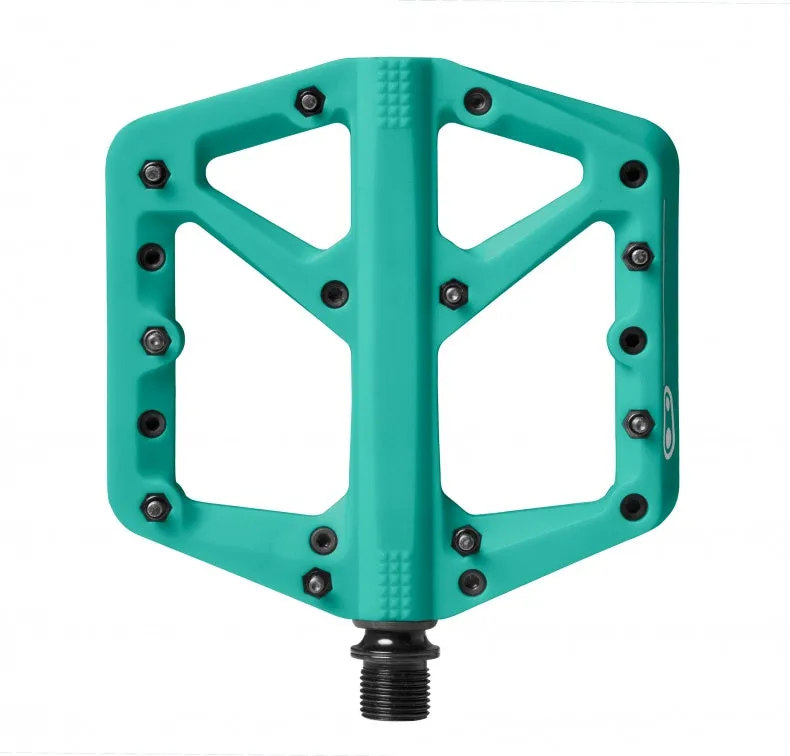

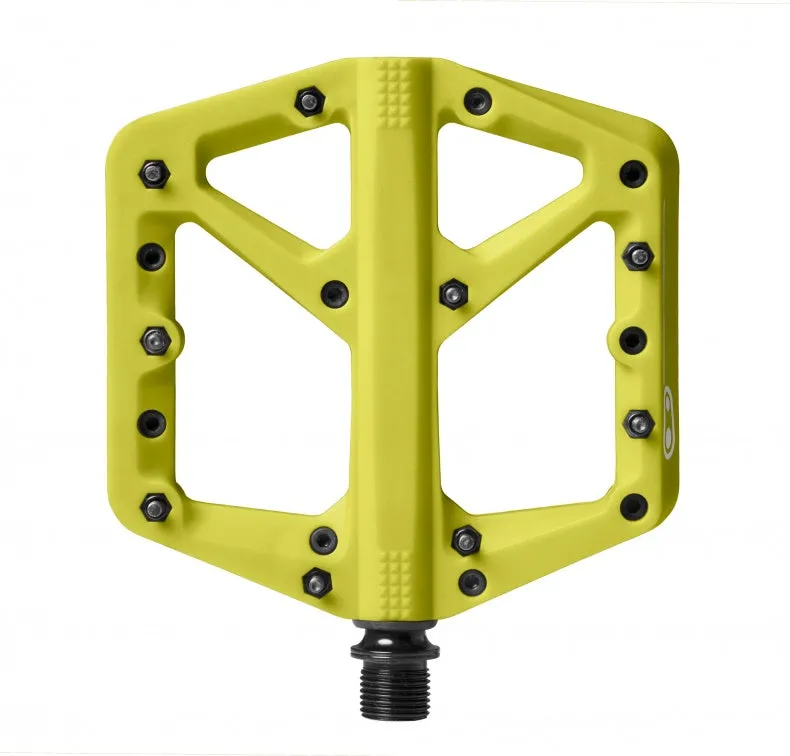

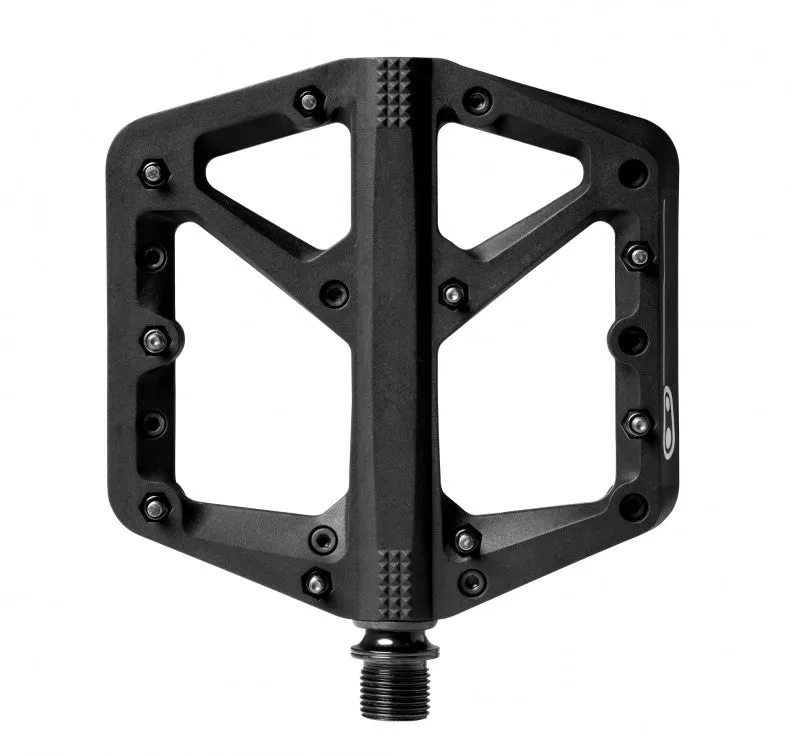

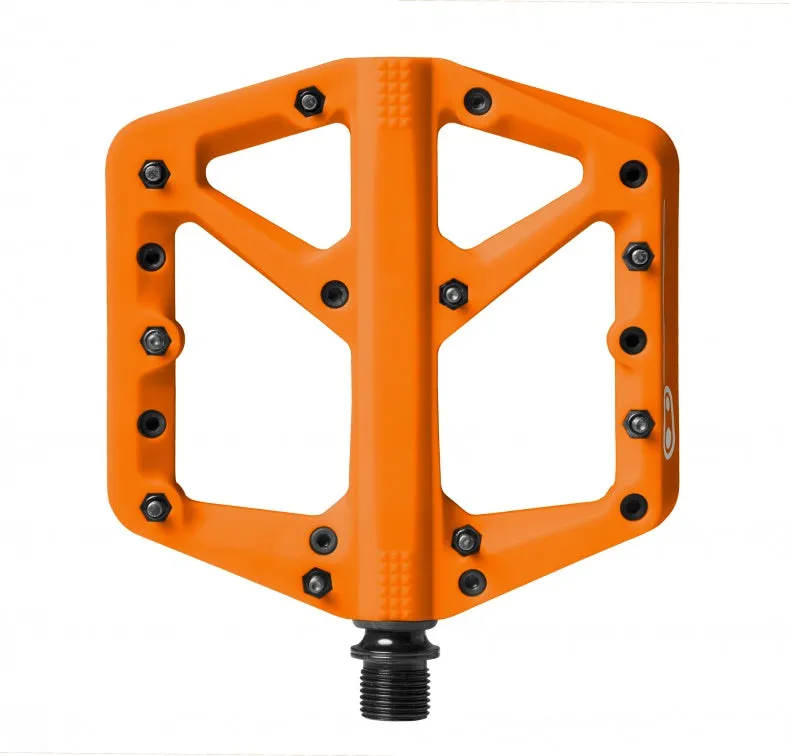

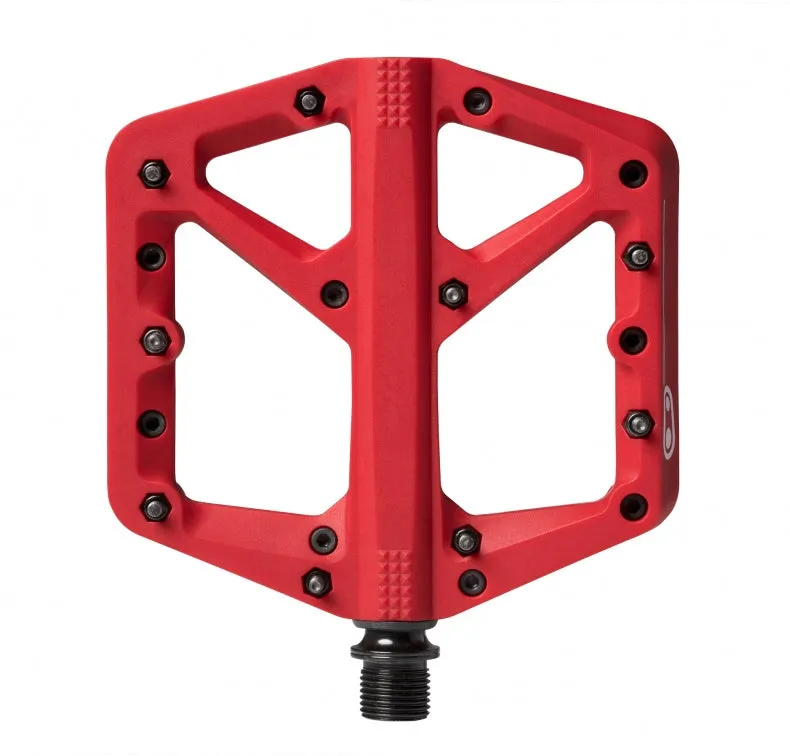

Stamp 1
Size specific, entry-level, composite platform pedal with optimal shoe/pedal interface.
Details
- Optimal surface area
- Minimal profile 13mm thin
- 10mm hex traction pins, 9 per side
- 12mm hex traction pins available through small parts orders
- Premium bearings & seal system
- Stamp small recommended for shoe sizes: 5-10 (us) // 37-43 (eu)
- Stamp large recommended for shoe sizes: 10-15 (us) // 43-49 (eu)
- Serviceable
Tech Specs
- body material Composite
- footprint 111mm x 114mm
- hex traction pins 9 per side (mounted from back)
- inner bearing type Igus LL-glide bearing
- outer bearing type Enduro cartridge bearing
- spindle material Forged scm 435 chromoly steel
- warranty 5 years
- shoe size 10-15 (us) // 43-49 (eu)
- weight 329g per pair
